Outdoor Waterproof LoRa 868MHz antenna Omni-Directional SMA Male 600-6000Mhz 3g 4g 5g Long Range Sticker antennas

Brand Name : BAIAO

Model Number : BIO-F032

Certification : CE IOS ROHS SGS

Place of Origin : Guangdong, China

MOQ : 100 Pieces

Price : $1.8/Pieces 100-499 Pieces

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 100000

Delivery Time : 15-22

Packaging Details : Normal by PE bag, color box, standard carton.According to the special requirements of the customers packaging.

Product Name : Lora and Communication Antenna

Contact Now

Outdoor Waterproof LoRa 868MHz antenna Omni-Directional SMA Male 600-6000Mhz 3g 4g 5g Long Range Sticker antennas

Peculiarity

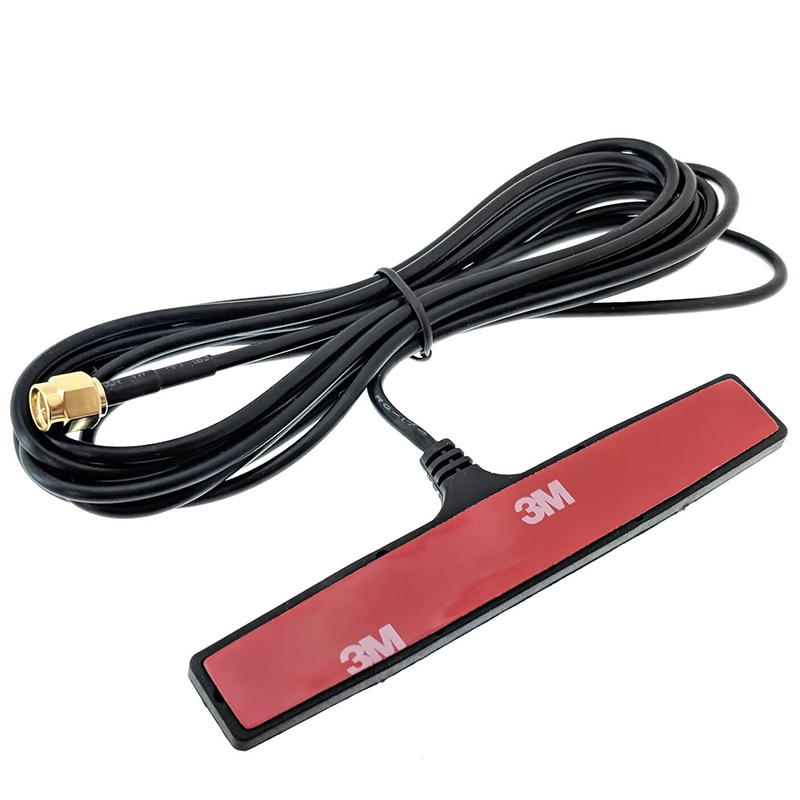

external 868MHz Omni-Directional SMA antenna,To be used in wide range of LoRa / Sigfox / ISM applications, like smart energy meters, home security, waste management, etc.

comes with 3m length cable and SMA Male type connector. 3M Industrial Adhesive at the back of antenna makes it convenient to stick it at some suitable place.
Specification:
Frequency(MHz):858-878
VSWR : ≤2
Gain(dBi): 3.0
Max Input power(W):50
Input Impedance(Ω):50
Polarization: Vertical
Antenna Length(mm): 108 x 30 x 7.5
Cable Length(m/ft): 3/9.8
Cable Type: RG174
Connector: SMA
Mounting: Adhesive
Working Temp:-40℃~+85℃
Storage Temp:-45℃~+100℃

Outdoor Waterproof LoRa 868MHz antenna Omni-Directional SMA Male 600-6000Mhz 3g 4g 5g Long Range Sticker antennas

Outdoor Waterproof LoRa 868MHz antenna Omni-Directional SMA Male 600-6000Mhz 3g 4g 5g Long Range Sticker antennas

Outdoor Waterproof LoRa 868MHz antenna Omni-Directional SMA Male 600-6000Mhz 3g 4g 5g Long Range Sticker antennas

FAQ

Q : Do you offer samples?
A : Yes, we offer samples for testing.


Q : What's your MOQ?
A : Our MOQ is 500pcs, the first order is negotiable.

Q : How do you test your prouducts?
A : We use network analyzer (Agilent 8714ET/HP-8714ET) to test the antennas’
VSWR,lmpedance,Smith Chart and Frequency in the simulation environment.

And conducting instrument to test the cable.


Q : How far your company from Shenzhen?
A : It only takes 30 minutes from Luohu railway station to Changping railway station by

CRH China Railway High-speed.


Q : Do you make OEM products?
A : Yes,we can do.

Q : Do you have RoHS certification?
A : We can do RoHS certifiction according to customers’ requirements.
The customers need to charge the handing fee.Or we can provide customers the SGS report of the

material for free.
